Automatic Large stator cnc coil winding machine for three phase
(1) Machine function and characteristic
This stator winding machine is suitable for multi-connected and
multi layer winding. It adopts special purpose controller which
could set the function of arraying direction, winding start point,
slow starting, slow ending, sides stop, auto width, auto reset,
There are two alternate spindles to facilitate higher output.
This type of CNC coil winding machine is suitable for stators needs
to do winding inserting by manual. The coil will be wound into the
winding tooling then operator needs unload the coils mannually.
(2) Main Technical parameter:
|Production name:||RX3A-550 large stator cnc coil winding machine|
|Effective length of tooling:||≤400mm|
|Max stack height:||300mm|
|Max stator OD:||210mm|
|Power supply:||220V/50/60Hz 2.2Kw|
This stator coil winding machine is specially designed for multiple
wire parallel coil winding such as fan motor, air conditioner
motor, alternator, servo motor ,pump motor and three phase motor.

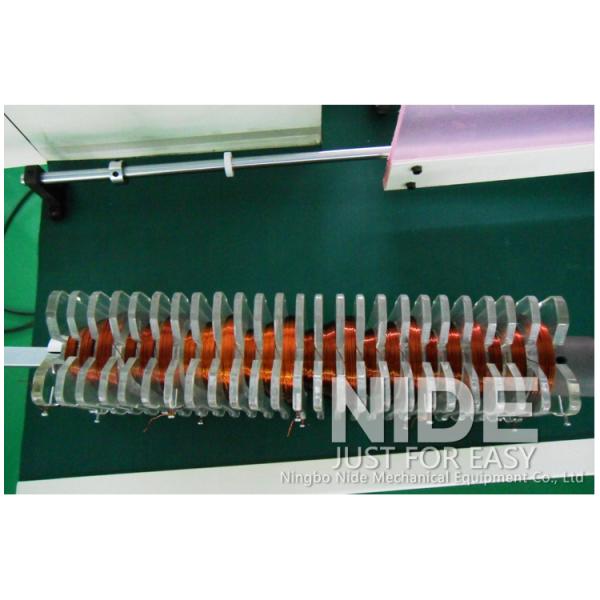

Stator coil winding machine winding tooling: the coil be wound into
the tooling shown as below page.
