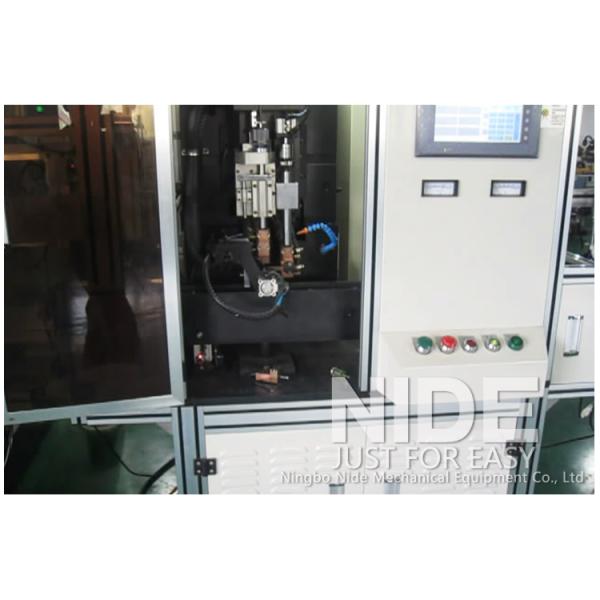

PCL Controlled Automatic Commutator Fusing Machine for DC and AC
1. Model No.: ND-LWD
2. Commutator OD ranges from15~40mm
3. This machine is controlled by PLC.
4. It has colorful touch screen, and data setting can be done on
the touch sreeen.
5. This machine is applied to DC motor and AC motor.
This PCL Controlled Automatic Commutator Fusing Machine is applied to DC motor and AC motor. It is controlled by PCL, all
the data setting can be done on the touch sreeen. This machine can automatically fuse, and operator only need to load
and unload rotor.
This machine is applied to DC motor and DC motor, which meet the
1. Wire diameter 0.1mm-0.8mm
2. Armature OD. φ20mm-φ70mm
3. Shaft OD: φ5mm-φ15mm
4. Commutator O.D.: φ15mm-φ40mm
5. commutator hook number/slot: 4hooks≤odd number hook ≤36hooks
6. machine power supply:three phase AC 380±10% 50HZ 40KW
7. Air source : 4kg/cm2—6kg/cm2
8. Machine weight: 800kg
9. Machine dimension:1000mmx950mmx1800mm
10. Production capacity: ≥1200pcs/shift(16slot 32hook armature)
This machine is easy for operation. It’s helpful for customer to
reduce labor cost and improve production efficiency.
