High Precision Stator Trickle Impregnation Machine For Household
1. This rickle machine is used for stator insulation treatment..
2. The Drop paint machine Machine Model number: ND-ZCJ.
3. Heating time, picth time and temperature can be set.
4. Varnish depth is 160mm.
Stator varnish dipping machine is used for stator insulation
treatment. The whole process, except for loading and unloading, is
completely automatically. Heating time, picth time and temperature
can be set.
This machine is suitable for stator which meet the below
≤145 C, adjustable
75KW (electricity supply)
15KW (diesel supply)
8000mm*2200mm*2500mm (electricity supply)
8000mm*4200mm*2800mm (diesel supply)
Q: What is the production capacity of this machine?
A: It depends on the customer's requirement, we could design the
working position number and pitch time accordingly.
Q: What kind of information is required for quotation?
A: We need stator drawing,required production capacity, how many
shift per day, and how many hours per shift, then we could provide
the proposal accordingly.
Information needed for Stator tickling machine inquiry
It will be better if customer could send us detailed drawing
including below information.
1. Stator assembly drawing
2. Required productivity
3. Required curing time
4. Other technical requirement
If possible, it will be better if customer can send us samples.

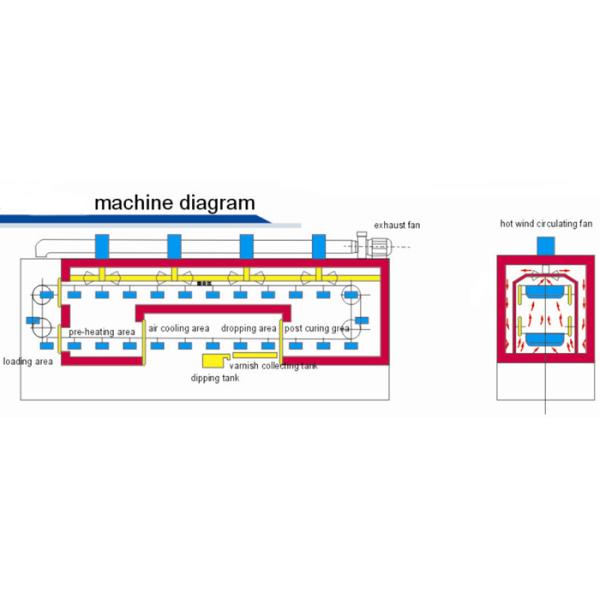

Stator varnishing machine diagram
